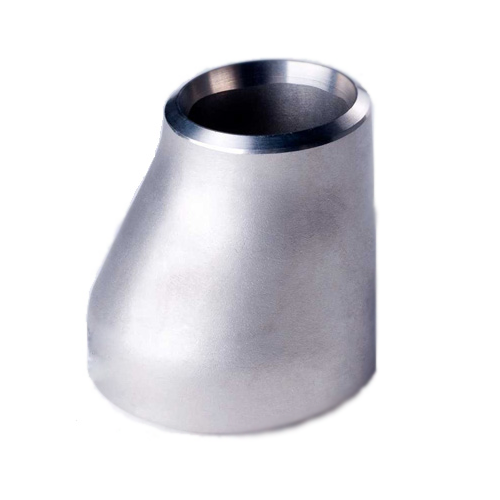

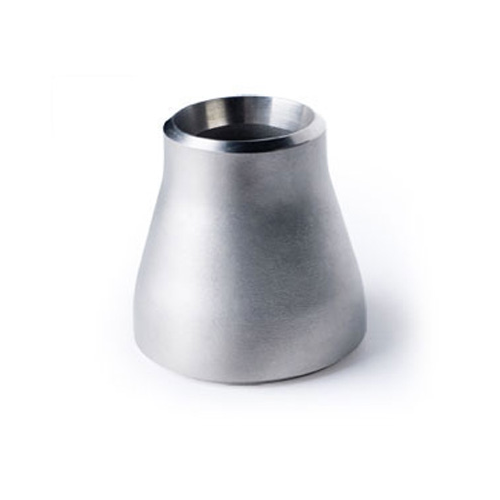

PIPE REDUCER – ECCENTRIC REDUCER CONCENTRIC REDUCER

Product Details

Butt‑weld Pipe Reducer Production Range – Concentric & Eccentric

Outside Diameter: Seamless Pipe Reducer ( 1/2″～24″), ERW / Welded /Fabricated Pipe Reducer (1/2″～48″)

Type: Concentric Reducer , Eccentric Reducer

Wall Thickness: 3mm‑ 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80,SCH120, SCH140, SCH160, XXS

Value Added Services: Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering

Production Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupronickel, Copper

Manufacturing Standards

ASME: ANSI B16.9, ANSI B16.28, MSS‑SP‑43

DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011

EN: EN10253‑1, EN10253‑2

ASTM A403‑ ASME SA403 − Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings

ASME B16.9− Factory‑Made Wrought Fittings Butt‑welding

ASME B16.25− Butt‑welding Ends ASME B16.28 − ‘Wrought Steel Short Radius Elbows and Butt‑welding Returns

MSS‑SP‑43− ‘Wrought and Fabricated Butt‑Welding Fittings for Low Pressure, Corrosion Resistant Applications

Pipe Reducer Material Grades

Stainless Steel Reducer; ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

Carbon Steel Reducer: ASTM A 234 WPB, WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Low Temperature Carbon Steel Reducer: ASTM A420 WPL3, A420 WPL6

Alloy Steel Reducer : ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Duplex Steel Reducer : ASTM A815, ASME SA 815 UNS NO S31803, S32205.

Nickel Alloy Reducer: ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400(MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )
