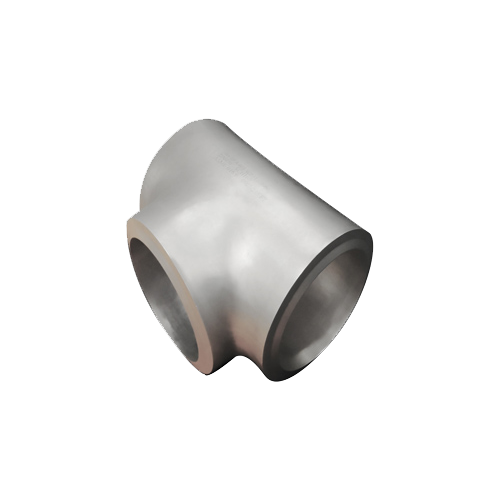

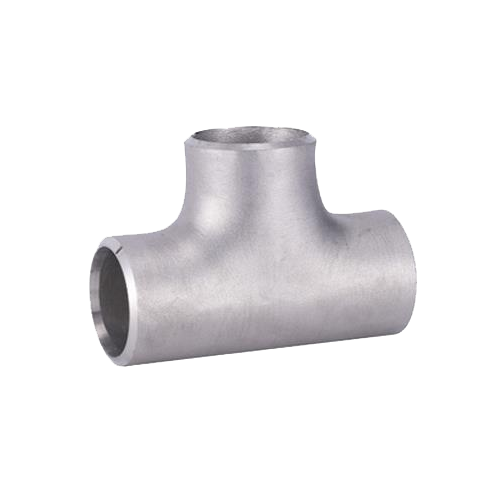

PIPE TEE − EQUAL TEE | REDUCING TEE CARBON,ALLOY, STAINLESS STEEL EQUAL / REDUCER TEE

Product Details

Butt‑weld Pipe Tee Production Range − Equal Tee, Unequal Tee (Reducing Tee)

Outside Diameter: Seamless Pipe Tee ( 1/2″~24″), ERW / Welded/ Fabricated Pipe Tee (1/2″~48″)

Types: Equal Tee , Reducing Tee

Wall Thickness: 3mm− 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Production Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupronickel

Manufacturing Standards − Pipe Tee

ASME: ANSI B16.9, ANSI B16.28, MSS‑SP‑43

DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011

EN: EN10253‑1, EN10253‑2

ASTM A403 − ASME SA403 − Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings

ASME B16.9 − Factory‑Made Wrought Fittings Butt‑welding

ASME B16.25 − Butt‑welding Ends

ASME B16.28 − ‘Wrought Steel Short Radius Elbows and Butt‑welding Returns’

MSS SP‑43 − ‘Wrought and Fabricated Butt‑Welding Fittings for Low Pressure, Corrosion Resistant Applications’

Pipe Tee Material Grades

Stainless Steel Tee; ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

Carbon Steel Tee: ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Low Temperature Carbon Steel Tee: ASTM A420 WPL3, A420 WPL6

Alloy Steel Tee: ASTM/ ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Duplex Steel Tee: ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Material No. 1.4462

Nickel Alloy Tee: ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201(NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625(INCONEL 625), UNS 10276 ( HASTELLOY C 276 )
